Selection strategy and core requirements for protective film in copper plating process of aluminum strip

In the single-sided copper plating process of aluminum strip, protecting the unplated side is a crucial step in ensuring product quality. As the core protective carrier, the protective film must simultaneously meet three core objectives: "resistance to electroplating solution corrosion," "removal without residue," and "maintaining the original quality and color of the aluminum strip." Its performance selection directly affects the stability of the electroplating process, product yield, and production costs. This article, based on the process characteristics of copper plating on aluminum strip, deeply analyzes the core requirements of process protection for the protective film, and then proposes a scientific selection logic and practical points.

I. Key Challenges and Core Role of Protective Film in Copper Plating of Aluminum Strip Aluminum strip is lightweight and possesses excellent thermal and electrical conductivity. However, it is chemically reactive. During copper plating, if the unplated surface directly contacts the plating solution (often acidic), oxidation and corrosion can easily occur, leading to defects such as pitting, color differences, and etching, directly affecting the product's appearance and performance. Furthermore, improper handling during the removal of the protective film after plating can increase subsequent cleaning costs and even damage the aluminum strip surface during cleaning, destroying its original gloss.

Against this backdrop, the core function of the protective film is reflected in three dimensions: First, precise isolation and protection, forming a dense protective barrier to prevent the electroplating solution from penetrating to the non-copper-plated surface of the aluminum strip, thus avoiding chemical corrosion; second, process compatibility, maintaining structural stability in the temperature, humidity, and chemical environment of electroplating, without swelling, decomposition, or viscosity reduction; and third, ensuring clean removal, forming a moderate adhesive bond with the aluminum strip surface, allowing for complete removal without leaving any adhesive residue or damaging the aluminum strip substrate.

II. Core Performance Requirements of Protective Films in the Copper Plating Process of Aluminum Strips

(I) Excellent Chemical Corrosion Resistance to Resist Electroplating Solution Erosion

The corrosiveness of the electroplating solution is the primary challenge that the protective film must address. Commonly used acidic electroplating solutions for copper plating of aluminum strips (such as copper sulfate electroplating solutions) contain sulfuric acid, copper ions, and various additives, exhibiting strong oxidizing and acidic properties. Therefore, the protective film must possess excellent acid resistance, oxidation resistance, and impermeability. On one hand, the substrate of the protective film (such as PE, PET, PVC, etc.) must not undergo chemical decomposition in an acidic environment to prevent protective failure due to substrate damage. On the other hand, the adhesive layer of the protective film must have acid-swelling resistance to prevent softening and loss of adhesiveness upon contact with acid, thus avoiding loss of adhesion or adhesive residue.

In practice, the corrosion resistance of the protective film needs to be tested using a simulated electroplating environment: An aluminum strip sample covered with the protective film is immersed in the electroplating solution and left to stand at the standard electroplating temperature (usually 20-50℃) and electroplating time. After removal, the protective film is observed for blistering, discoloration, or damage, and the surface of the aluminum strip is checked for corrosion marks. A qualified protective film should maintain complete protective performance throughout the entire electroplating cycle without any penetration.

(II) Precise Adhesion Control for "Easy to Apply, Easy to Remove, and No Residue"

Adhesion is a core indicator for the protective film's compatibility with the copper plating process of aluminum strips. Excessively high or low adhesion will lead to quality problems. If the adhesive strength is insufficient, the protective film is prone to peeling and detachment during electroplating, failing to effectively isolate the electroplating solution. If the adhesive strength is too high, adhesive residue will remain upon removal, or excessive pulling force may damage the oxide film on the aluminum strip surface, destroying its original color. Therefore, the adhesive strength of the protective film needs to be precisely matched to the surface condition of the aluminum strip (such as roughness and cleanliness) and process requirements, typically choosing products with low to medium-low adhesion (1-5g/25mm, tested according to GB/T 2792-2014 standard).

Furthermore, the tackiness and temperature resistance of the adhesive layer must also meet requirements simultaneously. In the temperature environment of the electroplating process, the adhesive layer should maintain stable adhesion without tack decay or migration; upon removal, the adhesive layer should remain intact on the protective film substrate without "adhesive transfer." It is recommended to choose protective films using acrylic microsphere adhesive or silicone, as these adhesive layers have excellent adhesion stability and clean removal performance, effectively avoiding adhesive residue problems.

(III) Good Substrate Compatibility to Preserve the Original Quality and Color of Aluminum Strip

Aluminum strip surfaces typically possess a specific gloss and smoothness. The selection of the protective film must avoid damaging or affecting this. On one hand, the substrate of the protective film should be sufficiently flexible to adhere tightly to the aluminum strip surface during application, preventing air bubbles and avoiding scratches caused by an overly hard substrate. On the other hand, the adhesive layer of the protective film should be made of inert materials, not reacting chemically with the aluminum strip surface to avoid contamination or color differences.

For high-gloss aluminum strips, a low-haze, high-transparency protective film should be specifically selected to avoid haze or residual marks during application. Simultaneously, the tearing force of the protective film should be stable to avoid "scratch marks" on the aluminum strip surface caused by excessive instantaneous pulling force. It is recommended to conduct small-sample tests before selection to observe changes in gloss and color difference on the aluminum strip surface after application and removal, ensuring compliance with product quality requirements.

(iv) Adaptability to Process Parameters and Good Processing Compatibility

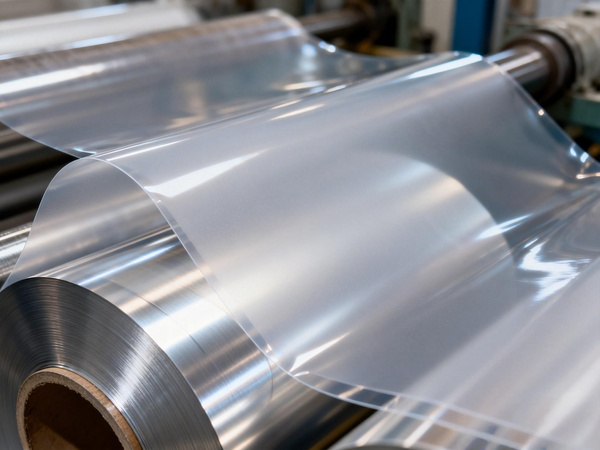

The copper plating process for aluminum strip typically involves multiple steps, including unwinding, lamination, electroplating, rewinding, and removal. The protective film must possess good processing adaptability. Firstly, it must have sufficient tensile and tear strength to withstand the tension during unwinding and rewinding without breaking or tearing. Secondly, it must have good temperature stability to adapt to temperature changes during electroplating (typically 20-50℃) without shrinking or deforming. Thirdly, it should not easily generate static electricity after lamination, avoiding the adsorption of dust and impurities that could affect the cleanliness of the electroplating environment.

Furthermore, for continuous production lines of copper plating aluminum strip, the width and length of the protective film must precisely match the specifications of the aluminum strip, while also possessing good rewinding flatness to avoid lamination deviations due to uneven rewinding, which would affect the protective effect.

III. Selection Logic and Practical Points for Protective Film in Copper Plating Process of Aluminum Strip

(I) Clarify Core Requirements and Prioritize Performance

Before selecting a protective film, the core requirements of the process must be clearly defined: If the electroplating solution is highly corrosive, priority should be given to ensuring chemical corrosion resistance, selecting a protective film with PVC or modified PE substrate; if the aluminum strip is a high-gloss product, priority should be given to ensuring surface protection, selecting a PET protective film with silicone or low-tack acrylic adhesive; if it is a continuous high-speed production process, priority should be given to ensuring processing compatibility, selecting a product with high tensile strength and good winding performance.

(II) Material Selection Based on Process Parameters

Materials should be selected based on parameters such as electroplating temperature, tension, and aluminum strip surface condition: For low-temperature electroplating (20-30℃), ordinary PE substrate + acrylic adhesive can be selected; for medium-temperature electroplating (30-50℃), high-temperature resistant modified PE or PET substrate should be selected; when the aluminum strip surface roughness is high, the adhesion can be appropriately increased (3-5g/25mm) to ensure tight adhesion; for smooth, high-gloss aluminum strips, low-adhesion (1-3g/25mm) silicone protective film should be selected.

(III) Emphasis on Small-Scale Testing to Verify Practical Compatibility

Regardless of the theoretically selected protective film, small-scale testing is required before mass production. Test items include: resistance to electroplating solution corrosion, bubble-free adhesion, residue-free removal, surface gloss change, tensile strength, and tear strength. By simulating actual process conditions, the comprehensive performance of the protective film can be verified, avoiding batch quality problems caused by improper selection.

(IV) Balancing Cost and Stability: While meeting performance requirements, the cost and supply stability of the protective film must be comprehensively considered. Different materials of protective film have significantly different costs (e.g., silicone protective film is more expensive than acrylic adhesive film), requiring a reasonable selection based on product positioning and production cost budget. Simultaneously, selecting suppliers with stable supply and controllable quality is crucial to avoid process stability issues caused by fluctuations in protective film quality.

IV. Conclusion: In the copper plating process of aluminum strip, the selection of the protective film is a key step in ensuring product quality. Its core lies in balancing four core requirements: corrosion resistance, adhesion control, substrate compatibility, and processing compatibility. By clearly defining process requirements, selectively screening materials, conducting rigorous small-sample testing, and balancing cost-effectiveness, suitable protective film products can be selected, effectively avoiding corrosion and adhesive residue problems during electroplating, ensuring the original quality and color of the aluminum strip, and improving process stability and product qualification rate. In the future, with the upgrading of electroplating processes and the increasing environmental protection requirements, protective films with higher corrosion resistance, better clean removal performance, and environmentally friendly properties will become the industry trend.
