Research on the Requirements of Protective Film for the Surface Protection of TV Frame

With the iteration and upgrading of display technology, the appearance design of televisions is gradually developing towards lightweight, integrated, and high-end direction. As the core component of television appearance, the surface texture and integrity of the frame directly affect the visual experience and market competitiveness of the product. During the production, storage, transportation, and terminal sales of televisions, the surface of the frame is susceptible to scratches, stains, wear, corrosion, and other damages, leading to a decrease in product appearance, an increase in repair rates, and even affecting consumers' willingness to purchase. As the core consumable for protecting the surface of the frame, protective film can effectively isolate external damage factors and ensure the integrity of the frame surface. This article takes the actual demand for surface protection of TV frames as the starting point, and combines the characteristics of frame materials and the differences in usage scenarios to systematically discuss the core requirements of protective films for TV frame surface protection. It provides theoretical support and practical reference for the selection, research and application of protective films, and helps to improve the appearance quality and market competitiveness of TV products.

Introduction

As the core device of home audio and video entertainment, the appearance design of television has become an important breakthrough in product differentiation competition. Currently, mainstream TV frame materials are showing a trend of diversification, including plastic, metal (aluminum alloy, stainless steel, etc.), glass, and composite materials. There are significant differences in surface treatment processes for frames made of different materials, such as spraying, anodizing, electroplating, drawing, polishing, etc., resulting in different textures and performance of the frame surface. However, regardless of the material and surface treatment process, TV frames face many risks of damage at various stages of their entire lifecycle: during the production process, the frames may rub and scrape against fixtures and production equipment; During the storage and transportation process, the frame is susceptible to packaging compression, dust adhesion, moisture erosion, and even scratches caused by collisions with other components; In the terminal sales process, the frame of the display prototype is exposed for a long time, which can easily be touched by consumers, leaving fingerprints, stains, or scratched by sharp objects, affecting the display effect of the product.

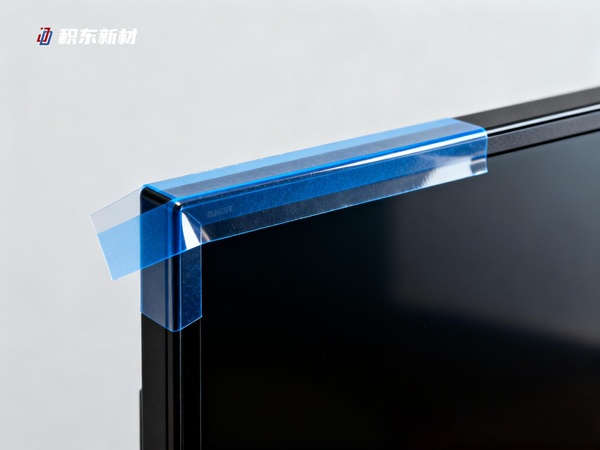

Protective film, as a low-cost, efficient and convenient surface protection solution, is widely used in the protection of TV frames. However, not all types of protective films can meet the protection needs of TV frames. If the performance of the protective film does not match the frame material and usage scenario, it may not only fail to provide effective protection, but also cause secondary damage to the frame surface, such as residual glue, surface corrosion, and decreased glossiness. Therefore, it is of great practical significance to clarify the core requirements for protective film on the surface protection of TV frames, and select suitable protective film based on the characteristics of frame materials and usage scenarios, in order to ensure the surface quality of TV frames, reduce product wear and tear, and enhance user experience. This article is based on the protection requirements and application scenarios of TV frames, and systematically analyzes the various requirements that protective films should have from multiple dimensions such as adaptability, protection, practicality, and environmental friendliness.

1. Material characteristics and protection pain points of TV frame

1.1 Mainstream TV frame materials and surface characteristics

The material selection of the TV frame directly determines its surface characteristics, mechanical properties, and appearance texture, and indirectly determines the performance requirements for the protective film. The mainstream TV frame materials in the current market are mainly divided into four categories: first, plastic materials, including ABS, PC, PVC, etc., which have the advantages of low cost, easy molding, and light weight. Surface treatment often uses spraying, injection molding coloring and other processes, with a soft surface texture but low hardness, easy scratching and aging; The second type is made of metal materials, mainly aluminum alloy and stainless steel, which have the characteristics of high hardness, strong wear resistance, and high-end texture. Surface treatment commonly uses processes such as anodizing, electroplating, and wire drawing. The surface is smooth and has a certain glossiness, but it is prone to fingerprints and corrosion; The third is glass material, mostly made of tempered glass, which has advantages such as transparency, wear resistance, and high temperature resistance. The surface is smooth and flat, but it is brittle and prone to cracks and scratches due to collisions; The fourth is composite materials, which combine the advantages of various materials such as plastic and metal composites, glass and metal composites, etc. The surface treatment process is more complex, and the protection requirements are also more diverse.

1.2 Core pain points for surface protection of TV frame

Based on the material characteristics of TV frames and their full lifecycle usage scenarios, the core pain points of surface protection mainly focus on four aspects: firstly, scratch damage, which is the most common type of damage. Friction, collision, and contact with sharp objects during production, transportation, and display processes may leave scratches on the frame surface, damaging surface integrity; Secondly, the attachment of stains, including dust, oil stains, fingerprints, water stains, etc., especially for metal and glass frames with smooth surfaces, fingerprints and stains are easy to attach and difficult to clean, affecting the appearance and texture; Thirdly, corrosion damage, moisture, acidic and alkaline substances during storage and transportation, as well as sweat and cleaning agents in the usage environment, may cause corrosion to the surface of the frame, leading to problems such as discoloration, bulging, and peeling; Fourthly, secondary damage. If the protective film is not selected properly, such as with strong adhesion or hard material, it may cause the coating on the surface of the frame to peel off, residual glue to remain, or scratch the surface of the frame when removing the protective film, which will exacerbate the damage.

The above protection pain points determine that the protective film used for TV frames cannot be a regular universal protective film, but needs to have targeted performance, be able to adapt to the surface characteristics of different frame materials, effectively solve various damage problems, and avoid causing secondary damage to the frame itself.

Core requirements for protective film on the surface protection of TV frame 2

2.1 Material adaptability requirements: Adhere to the characteristics of the frame to avoid secondary damage

Material adaptability is the primary requirement for protective films used on TV frames. The substrate and adhesive layer of the protective film should match the material and surface treatment process of the frame, ensuring both firm adhesion and avoiding damage to the frame surface. This is also the core of solving the pain points of secondary damage.

For plastic frames, due to their low surface hardness and easy coating detachment, the substrate of the protective film should be made of soft and tough materials, such as PE and PET film, to avoid using materials with high hardness and prevent the protective film itself from scratching the frame; The adhesive layer should be selected with low viscosity and easy to peel off pressure-sensitive adhesive, such as acrylic low adhesive, with a viscosity control of 5-10g/25mm, which can ensure a firm fit, prevent the protective film from falling off during transportation, and have no residual adhesive when peeled off, without damaging the spray coating on the surface of the frame. For metal frames, especially those treated with anodizing and electroplating, the surface should be smooth and have a certain degree of activity. The protective film's adhesive layer should have good corrosion resistance and compatibility to avoid chemical reactions between the adhesive layer and the metal surface, which can cause discoloration and corrosion of the frame surface; At the same time, metal frames are prone to fingerprint formation. Therefore, a protective film substrate with anti fingerprint coating can be selected to reduce fingerprint adhesion, and the adhesive layer should have moderate adhesion to avoid damaging the anodized layer or electroplating layer when peeled off.

For glass frames, their surface should be smooth and have high hardness. The protective film should have good adhesion to avoid the generation of bubbles, and the substrate should have a certain degree of wear resistance to effectively resist scratches; The adhesive layer should be made of transparent and residue free silicone, which has good high temperature and moisture resistance, and there should be no residue after tearing, which will not affect the transparency and glossiness of the glass frame. For composite material frames, due to their complex surface characteristics, protective films need to take into account the protection needs of different materials. Composite substrates or customized adhesive layers can be selected to ensure effective protection of all parts of the frame, while avoiding adverse reactions with any material.

2.2 Core protective requirements: resist various types of damage and ensure surface integrity

Protection is the core function of protective film. For the pain points of protecting TV frames, the protective film needs to have multiple properties such as wear resistance, scratch resistance, stain resistance, and corrosion resistance. It can effectively isolate external damage factors and ensure the integrity of the frame surface throughout its entire life cycle.

Wear and scratch resistance is the most basic requirement, and the surface of the protective film needs to have a certain hardness. Usually, a substrate with a Shore hardness of D60 or above is used, or a wear-resistant coating (such as SiO ₂ coating) is applied to the surface of the substrate, which can resist daily friction, slight collisions, and scratches from sharp objects, and avoid scratches on the surface of the frame. For frames with high hardness such as metal and glass, the wear resistance hardness of the protective film should match the surface hardness of the frame. It should not be too low to provide protection, nor too high to scratch the frame due to its own hardness.

The anti stain performance requires the protective film surface to have good hydrophobicity and oleophobicity, which can effectively repel dust, oil stains, fingerprints, water stains and other stains, reduce the adhesion of stains, and be easy to clean. Even if a small amount of stains are attached, they can be removed by simple wiping without leaving any traces. This performance is mainly achieved by coating anti fouling coatings on the surface of the protective film. Commonly used anti fouling coatings include fluorocarbon coatings, silicon coatings, etc., which can form a dense protective film on the surface of the protective film, isolating stains from contact with the substrate.

The anti-corrosion performance requires the protective film to have good barrier properties, which can effectively block corrosive factors such as moisture, oxygen, acid and alkali substances, and prevent them from penetrating between the protective film and the frame surface, causing corrosion to the frame surface. For metal frames, especially during storage and transportation in humid environments, the water vapor permeability of the protective film should be controlled at a low level (usually ≤ 5g/(m ² · 24h)); For plastic frames, the protective film needs to have a certain degree of aging resistance to avoid the generation of harmful substances that corrode the surface of the frame after aging. In addition, the protective film also needs to have a certain degree of temperature resistance, which can adapt to different storage and transportation environment temperatures (usually -20 ℃~60 ℃), to avoid softening, deformation in high temperature environments, or embrittlement and rupture in low temperature environments, affecting the protective effect.

2.3 Practical operational requirements: Convenient construction, adaptable to production and usage scenarios

The protective film for TV frame not only needs to have good adaptability and protection, but also needs to have convenient operability, which can adapt to multiple scenarios such as TV production, storage, transportation, and terminal display, improve construction efficiency, and reduce usage costs.

Firstly, the protective film needs to have good adhesion and ease of operation, which can quickly and smoothly adhere to the surface of the frame, avoiding the generation of bubbles and wrinkles. This requires the substrate of the protective film to have good flexibility and extensibility, able to adapt to complex shapes of the frame (such as curved frames, irregular frames), and the adhesive distribution of the adhesive layer is uniform. When bonding, there is no need to use complex tools, and manual or semi-automatic bonding can be carried out to improve the construction efficiency of the production process. Secondly, the protective film needs to have easy tearability, which can be easily removed during TV production, storage and transportation, or terminal sales. There should be no residual glue or breakage during the tearing process, and it should not affect subsequent assembly, packaging, or display work. For mass production scenarios, the protective film can also be designed with an easy to tear edge structure to further improve tear off efficiency.

In addition, the thickness of the protective film needs to be reasonably controlled, usually choosing a thickness of 0.03~0.1mm, to ensure sufficient protective performance while avoiding excessive thickness that may cause the appearance of the frame to become bulky and affect the overall appearance design of the TV; At the same time, the protective film needs to have good transparency (for transparent borders or scenes that require displaying border texture), with a transparency of ≥ 90%, able to clearly present the original texture of the border without affecting the display effect of the product. For scenarios that require printing labels (such as production batches, brand logos), the protective film also needs to have good printing adaptability, clear printing patterns, and be not easily peeled off.

2.4 Environmental and safety requirements: comply with standards, balance health and environmental protection

With the popularization of environmental protection concepts and the improvement of relevant standards, the environmental safety of protective films used for TV frames has also become an important requirement. During the production, use, and disposal process of protective film, harmful substances must not be generated and must comply with national and industry environmental standards, while also considering human health.

On the one hand, the substrate, adhesive layer and other raw materials of the protective film need to comply with environmental standards such as RoHS and REACH, and do not contain harmful substances such as lead, mercury, cadmium, hexavalent chromium, etc., to avoid environmental pollution during production and use, and to prevent harmful substances from migrating to the surface of the frame and affecting human health. On the other hand, after the protective film is torn off, it needs to be easy to recycle and reduce white pollution. Degradable substrates (such as polylactic acid PLA) or easily recyclable PET and PE materials can be selected to improve environmental performance.

In addition, the adhesive layer of the protective film needs to have good stability, not evaporate harmful substances during long-term use, not produce odors, and avoid affecting human health, especially suitable for protecting TV frames in household use scenarios.

3 Precautions for Selection and Application of Protective Film

Based on the above requirements for protective films, in the selection and application process of TV frame protective films, the following points should also be noted to ensure the protective effect and avoid secondary damage.

Firstly, it is necessary to select a protective film based on the material and surface treatment process of the frame. Different materials of frames have different requirements for the adaptability of protective films. For example, low viscosity PE protective film is preferred for plastic frames, acrylic PET protective film with good compatibility is preferred for metal anodized frames, and transparent silicone PET protective film is preferred for glass frames to avoid blind selection leading to protection failure or frame damage.

Secondly, the performance parameters of the protective film need to be adjusted according to the usage scenario. For example, for televisions that require long-term storage and long-distance transportation, the frame protective film needs to have higher wear resistance, corrosion resistance, and scratch resistance. Thickened protective films with wear-resistant coatings can be selected; The protective film for the frame of the terminal display prototype should have good transparency, anti fingerprint performance, and be easy to remove without affecting the display effect of the prototype.

Again, it is necessary to strictly control the construction quality of the protective film. Before applying the protective film, it is necessary to clean the dust, stains, and water stains on the surface of the frame to ensure that the surface is clean and dry, and to avoid bubbles and wrinkles after application; During the bonding process, pressure should be evenly applied to ensure that the protective film is tightly adhered to the surface of the frame without any gaps; When removing the protective film, it should be slowly removed along the edge of the frame to avoid excessive force that may cause the coating on the surface of the frame to peel off or scratch.

Finally, it is necessary to choose a protective film produced by a reputable manufacturer to ensure that its performance meets the requirements and its quality is stable and reliable. The protective film from legitimate manufacturers will undergo strict testing, and the environmental friendliness, compatibility, and protection of the material and adhesive layer can meet relevant standards, effectively ensuring the protective effect of the frame and reducing product loss caused by quality problems of the protective film.

Conclusion

As the core component of product appearance, the surface quality of the TV frame directly affects the market competitiveness of the product. As the core solution for protecting the surface of the frame, the performance and adaptability of the protective film directly determine the protective effect. This article analyzes the material characteristics and protection pain points of TV frame, and systematically discusses the core requirements of protective film for TV frame surface protection from four dimensions: material adaptability, core protection, practical operability, and environmental safety. Material adaptability requires that the protective film match the frame material and surface treatment process to avoid secondary damage; The core protective requirement is that the protective film has wear resistance, scratch resistance, stain resistance, corrosion resistance and other properties, and can resist various external damages; Practical operability requires the protective film to be easy to adhere, tear off, and have a reasonable thickness, suitable for different usage scenarios; Environmental safety requirements: The protective film must meet environmental standards, be free of harmful substances, and balance health and environmental protection.

In practical applications, it is necessary to select protective films that meet the requirements based on the frame material and usage scenario, and strictly control the construction quality in order to fully utilize the protective effect of the protective film, ensure the integrity of the TV frame surface, reduce product repair rate and wear, and improve the appearance quality and market competitiveness of the product. In the future, with the continuous upgrading of TV frame materials and surface treatment processes, as well as the further popularization of environmental protection concepts, protective films for TV frames will develop towards customization, high-end, and environmental protection. It is necessary to further strengthen the research and innovation of protective films, optimize performance parameters, and meet increasingly diversified protection needs.
